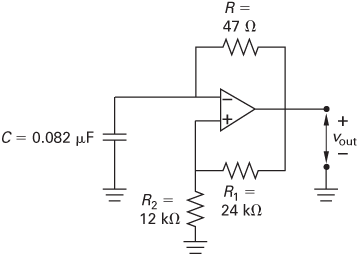

The op amp circuit shown is an astable (free-running) multivibrator.

If the output voltage, v o , is 11.5 V, the feedback voltage at the non-inverting terminal is most nearly
