Q6
#0000086584
6 / 218

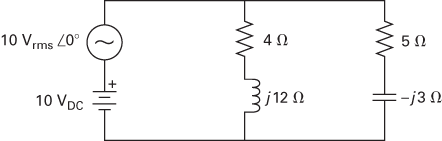

The circuit shown is in a steady state condition. The inductor and capacitor impedances are given for the frequency of the AC voltage source.
The maximum rms voltage drop across the 4 Ω resistor is most nearly
Browse-only — this topic has not been backfilled with correct-answer flags yet, so the quiz runner cannot score it.
A. 3.2 V
B. 6.2 V
C. 11 V
D. 13 V
