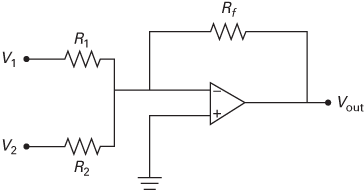

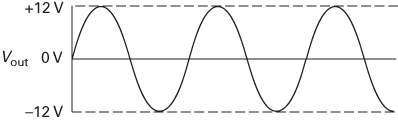

In the ideal op-amp configuration shown, V out = 12 V sinusoidal as shown in the waveform, R f = 60 kΩ, R 1 = 30 kΩ, and R 2 = 10 kΩ. Nothing is known about the inputs except that V 1 = 5V 2, and that they are 180° out of phase with the output. From this information, what are the maximum voltages of the inputs?
Browse-only — this topic has not been backfilled with correct-answer flags yet, so the quiz runner cannot score it.
A. V 1 = 0.75 V, V 2 = 3.75 V
B. V 1 = 5.00 V, V 2 = 1.00 V
C. V 1 = 12.5 V, V 2 = 2.50 V
D. V 1 = 3.75 V, V 2 = 0.75 V
